IS THE HEATER COMPATIBLE WITH GGS CONTROLLERS OR GGS AC5/AC10 POWER KITS?
Yes, the heater is fully compatible with all GGS series models (including GGS controllers and AC5/AC10 power kits).
Instructions:
1. App Update: Starting April 12, the latest version of the Digital Device app will include the new Heater module.

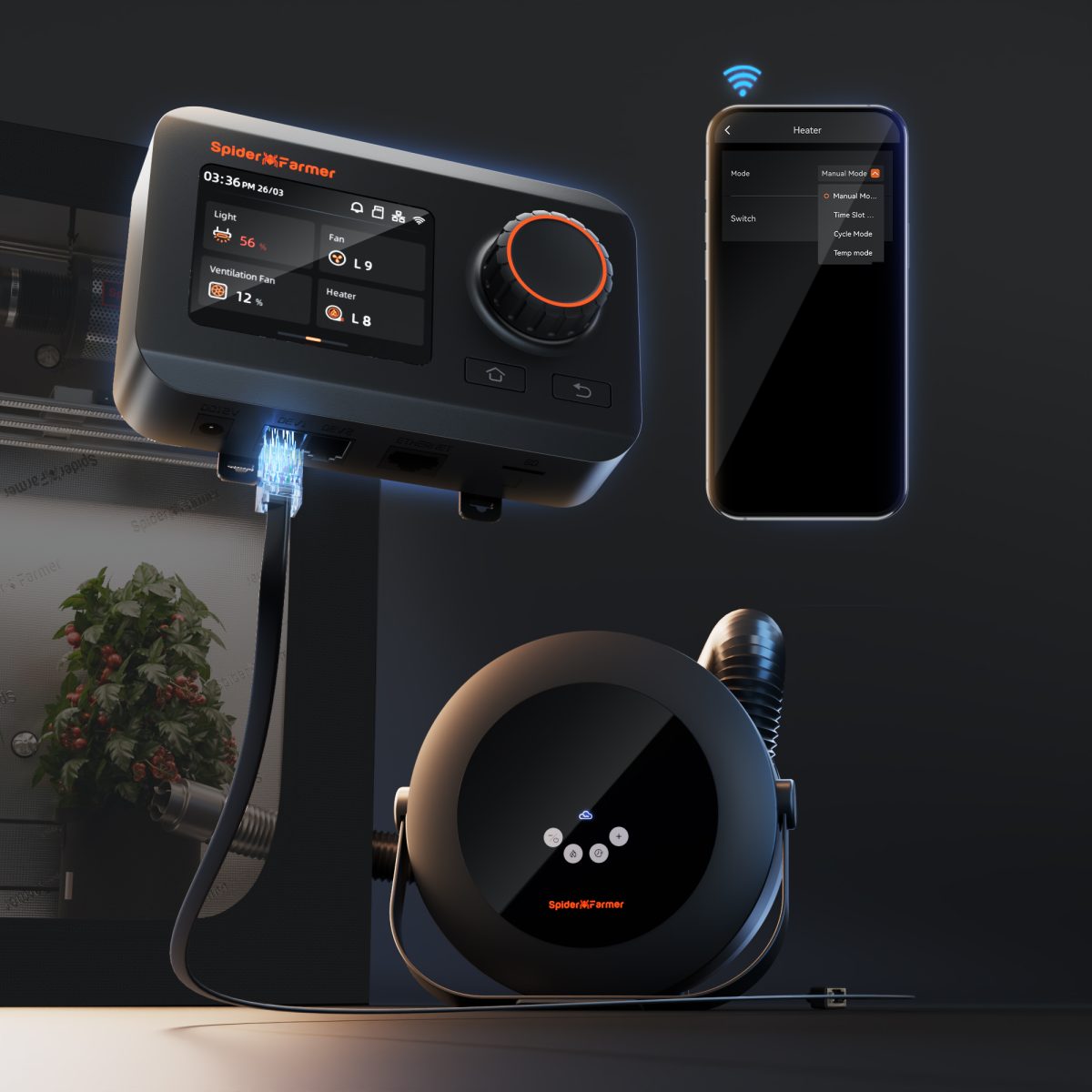

2. Connection: Plug the RJ12 cable into the power strip’s device port, and the app will automatically detect the heater.

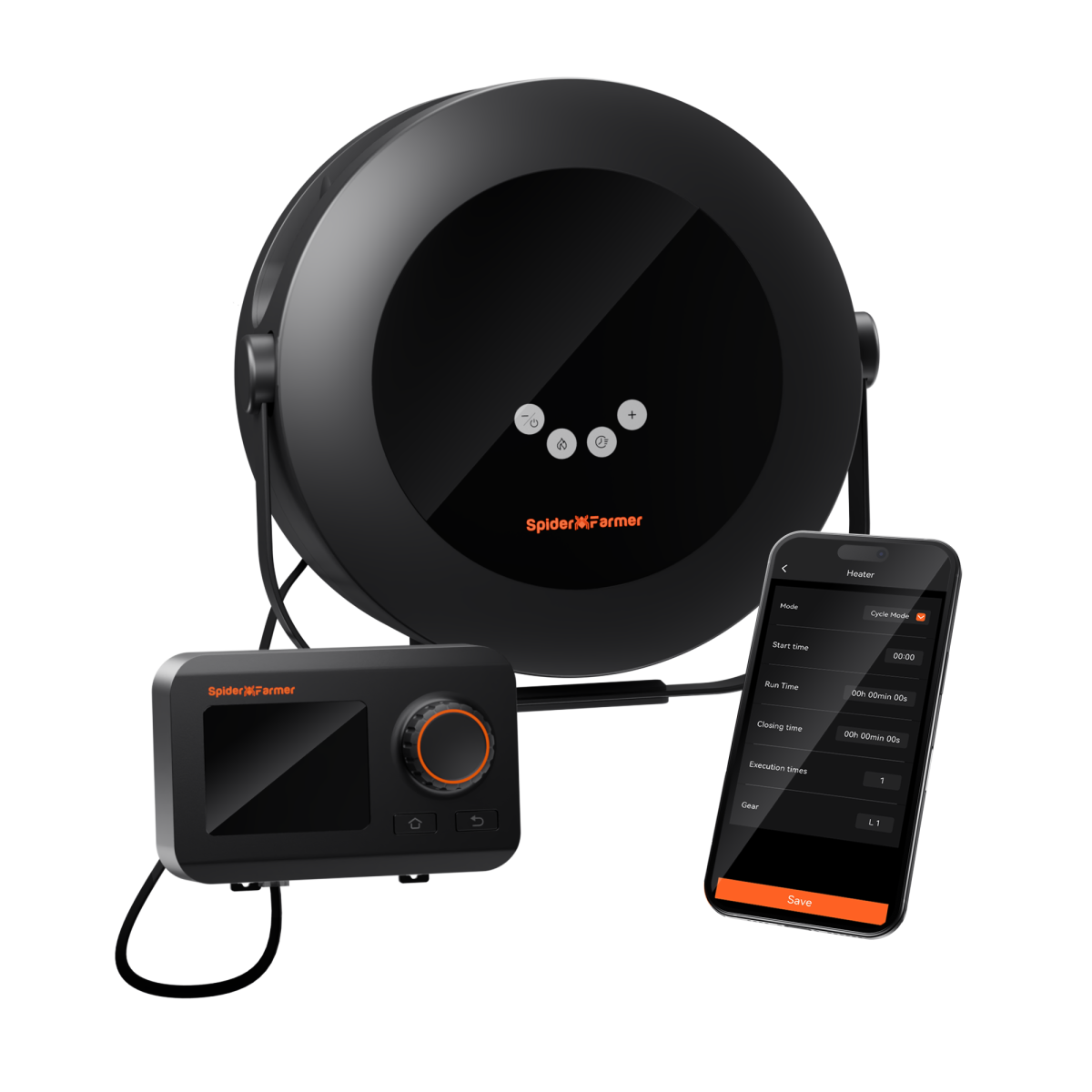

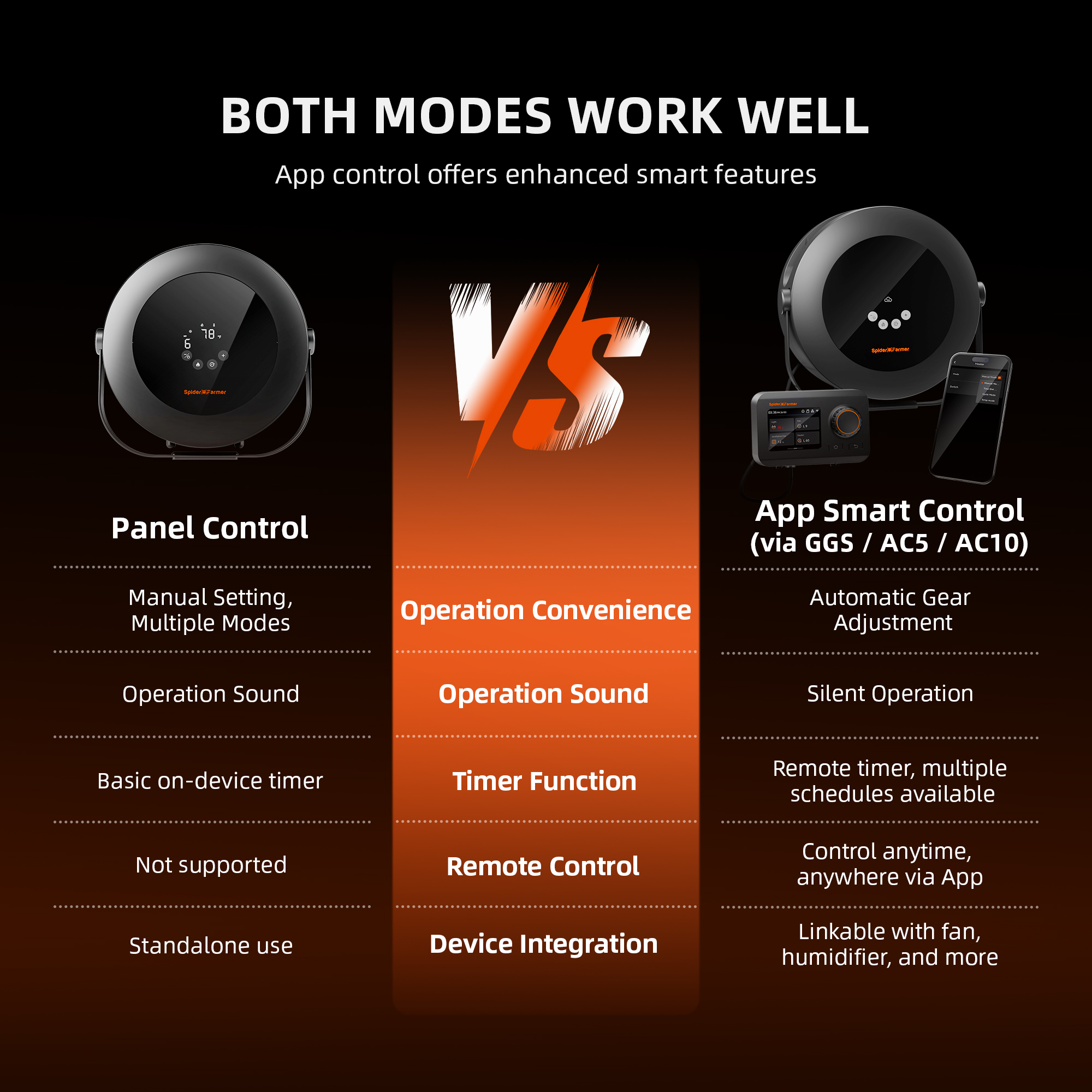

3. Smart Control: The app allows full control of the heater’s functions, including customizable timer settings for smarter operation.
Note:
*The heater must remain powered on for the app to recognize it.
*If using a GGS power kit, ensure the corresponding power button is always turned on.
Please update to the version released after April 12, 2025, to access the heater control panel.
4 Control Modes Available:
Manual Mode/ Time Slot Mode/ Cycle Mode / Temperature Mode(★)
1. Manual Mode
Control the on/off function, as well as the gear that is activated when it is turned on.

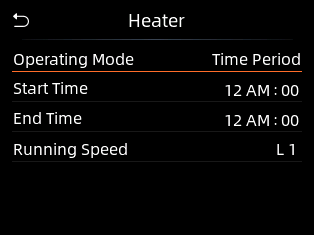

2. Time Period Mode
Start Time & End Time: Set the heater’s operating time
Running Speed:Choose the power level (L1–L10) for this period
3. Cycle Mode
Start Time: Set when the cycle begins
Running Time & Pause Time: Duration for heating and pausing
Example: If Start Time is 12:00 PM, Run Time = 1h, Closing Time = 1h → heater runs 12–1 PM, pauses 1–2 PM
Cycle Count: Number of on/off cycles
Example: If set to 2 cycles → heater runs again 2–3 PM, pauses 3–4 PM
Running Speed: Set power level (L1–L10) for the cycle
4. Temperature Mode (★)
Running Speed: Runs at the selected level (L1–L10) until the set temperature is reached
Note: If gear is set too low and room temp is too cold, the heater may not reach the target.
