Mode |
Key Advantage |
Use Case |
|
|---|---|---|---|
|
Manual Mode |
Stable, Predictable Airflow |
For precise temp, humidity & pressure control. |
|
|
Time Slot Mode |
Energy-Saving Standby |
Quiet operation and lower energy use |
|
|
Cycle Mode |
Ultra Quiet & Low Power |
Works best in stable temp & humidity, non-severe odor issues. |
|
|
Environment Mode |
|||
|
Temperature Priority |
Fast Heat Protection |
For bloom & fruit stages; dew-sensitive plants. |
|
|
Temperature Only |
Temp-Only Control |
For dry regions or winter; with separate dehumidifier. |
|
|
Humidity Only |
Humidity-Only Control |
For rooms with AC/heater; low temp risk. |
|
|
Temp & Humidity |
Dual Temp & Humidity Control |
Best for unstable environments; full control. |
|

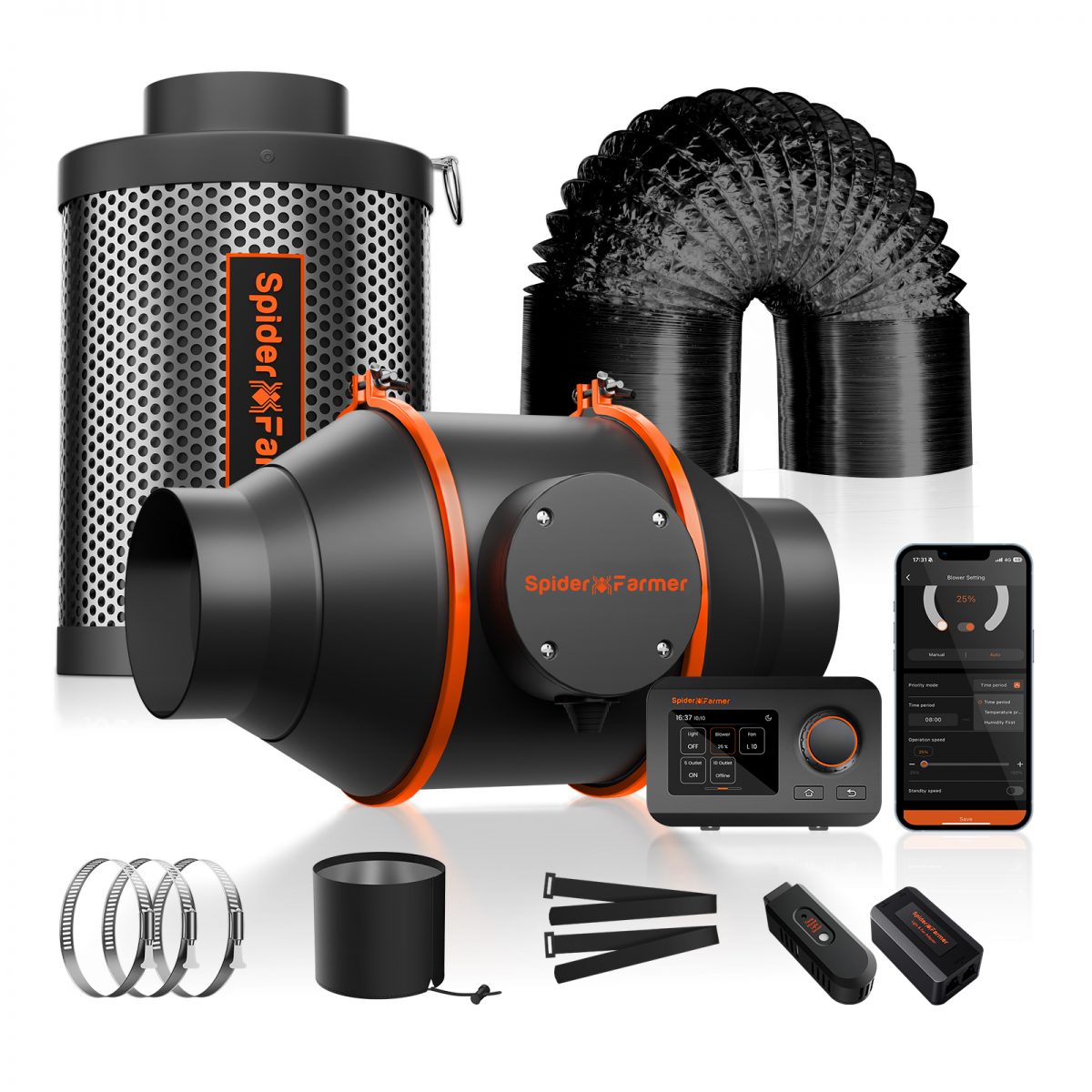

Smart Control through the Spider Farmer App
Start Time / End Time: Set when the fan should turn on and off automatically.
Operation Speed: Fan speed during active time.
Standby Speed: Fan speed during off-time. It must be lower than the operation speed. If not set, the fan stays off during standby.
Start Time: When the fan starts its first cycle.
Run Time: Duration the fan stays ON in each cycle.
Closing Time:Duration the fan stays OFF in each cycle.
Execution Times: Number of ON/OFF cycles to repeat.
e.g. Start at 12:00-Run 1h-Off 1h-Repeat 2 times
12:00-13:00 ON, 13:00-14:00 OFF, 14:00-15:00 ON, 15:00-16:00 OFF.
Temperature Priority Mode
For high-heat lamps or hot, dry climates.
Protects plants from heat stress and leaf burn ā temperature control comes first.
Humidity Priority Mode
Best for flowering or fruiting stages.
Prevents mold and mildew when humidity exceeds 60%.
Temperature-Only Mode
Ideal for dry regions or rooms with dehumidifiers.
Fast response to heat without humidity interference.
Humidity-Only Mode
Use when temperature is stable or air-conditioned.
Focuses on moisture control, avoiding overactivation.
Temp & Humidity Combined Mode
Designed to balance temperature and humidity together.
If either parameter moves out of the optimal range, the system will trigger automatic fan adjustments to stabilize the environment.

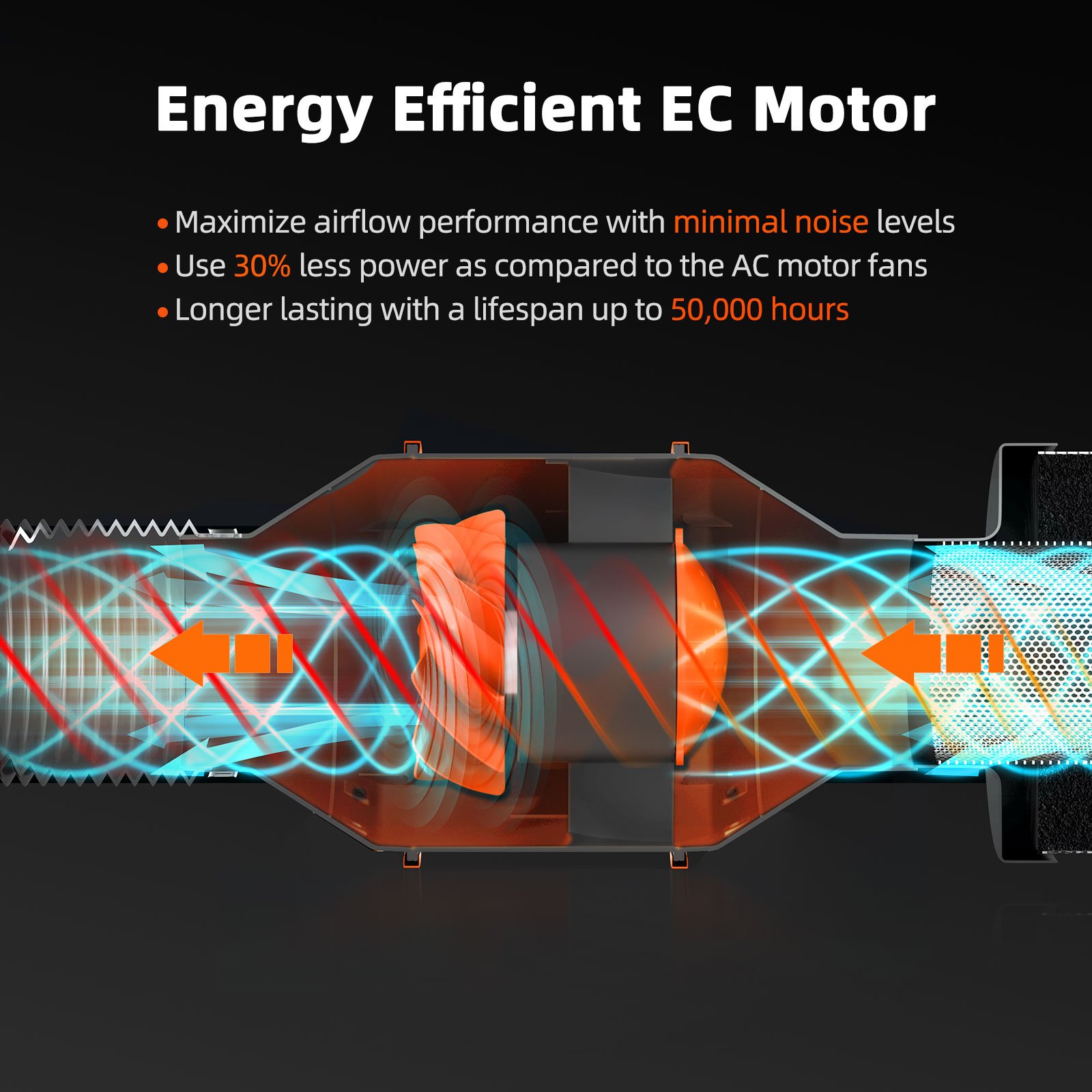

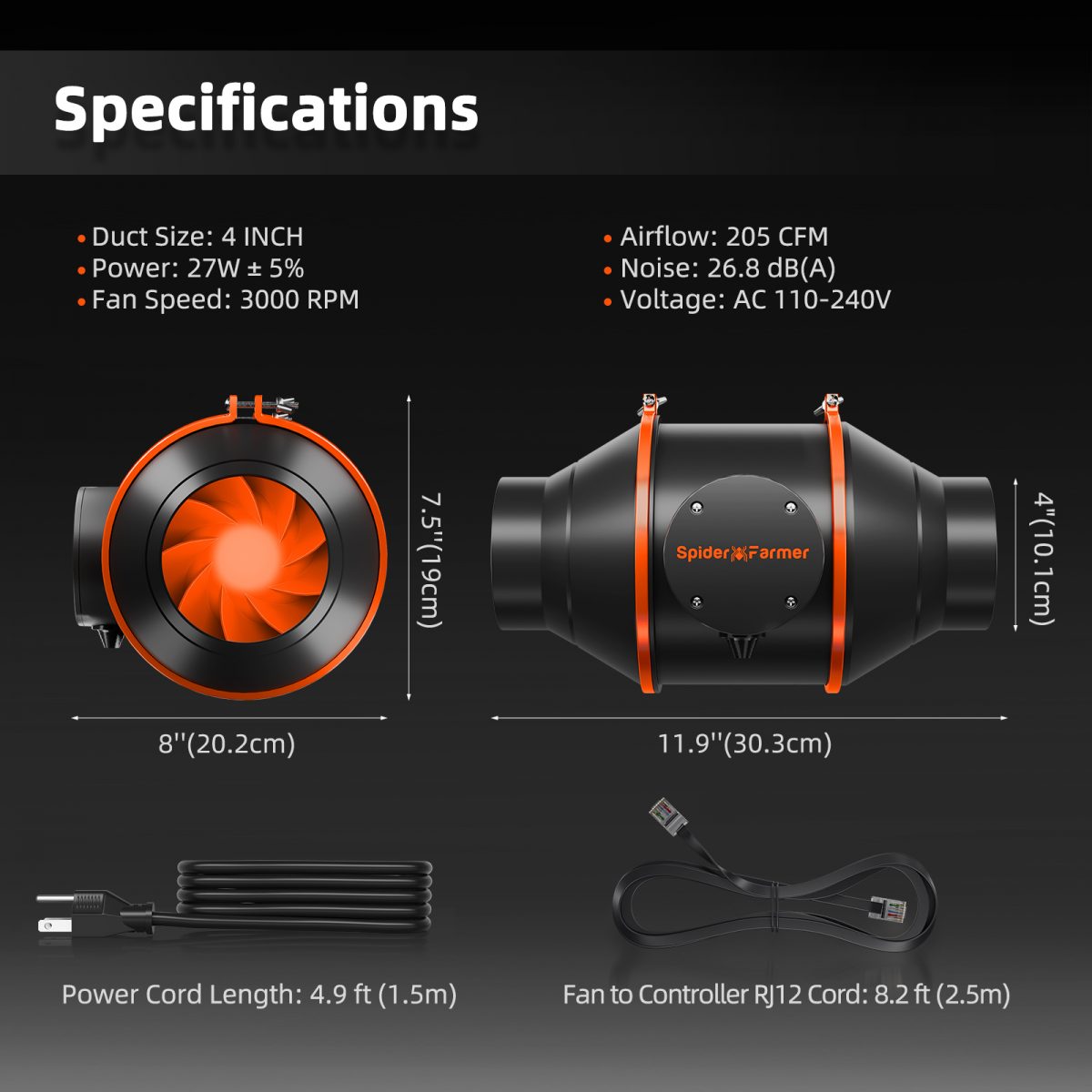

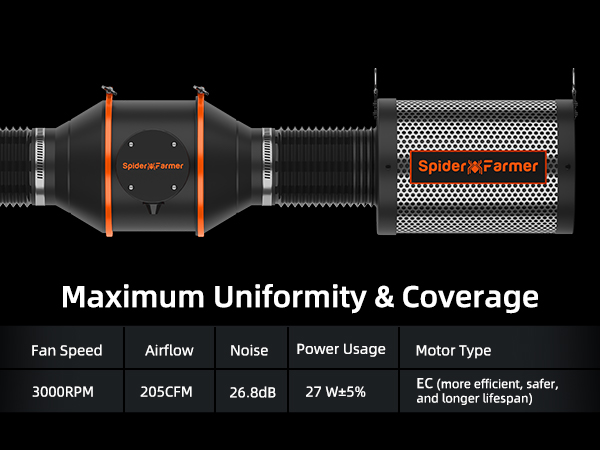

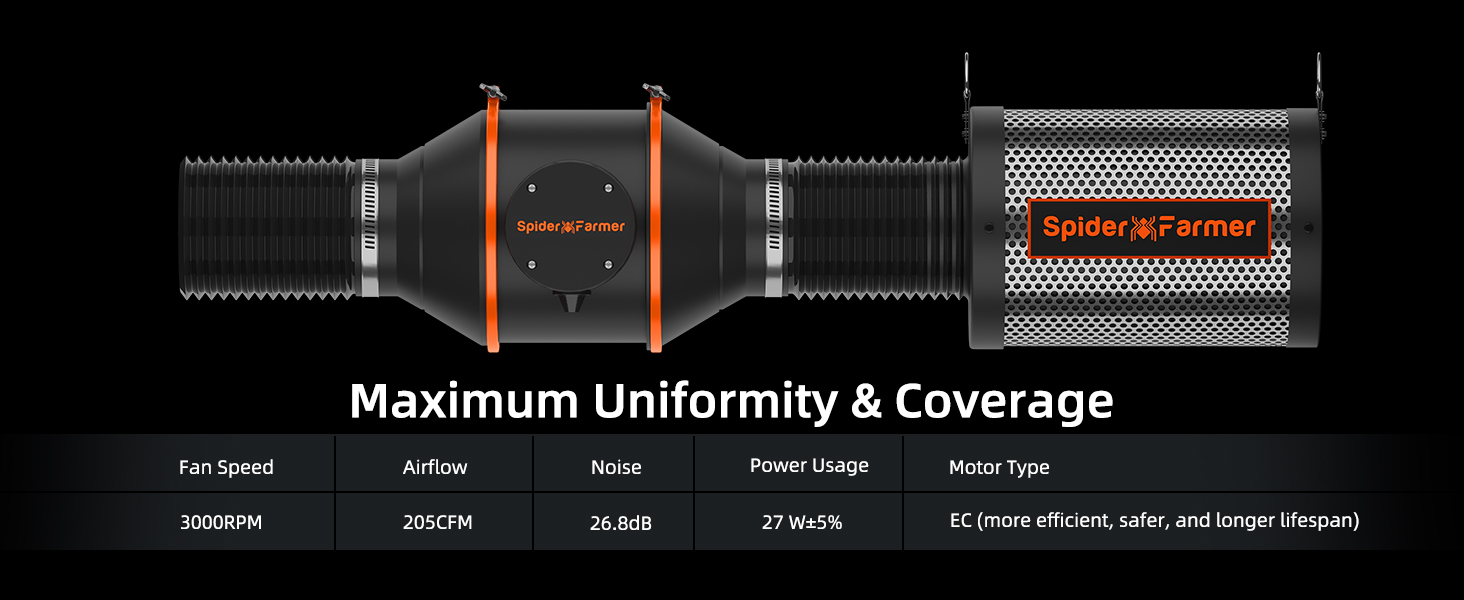

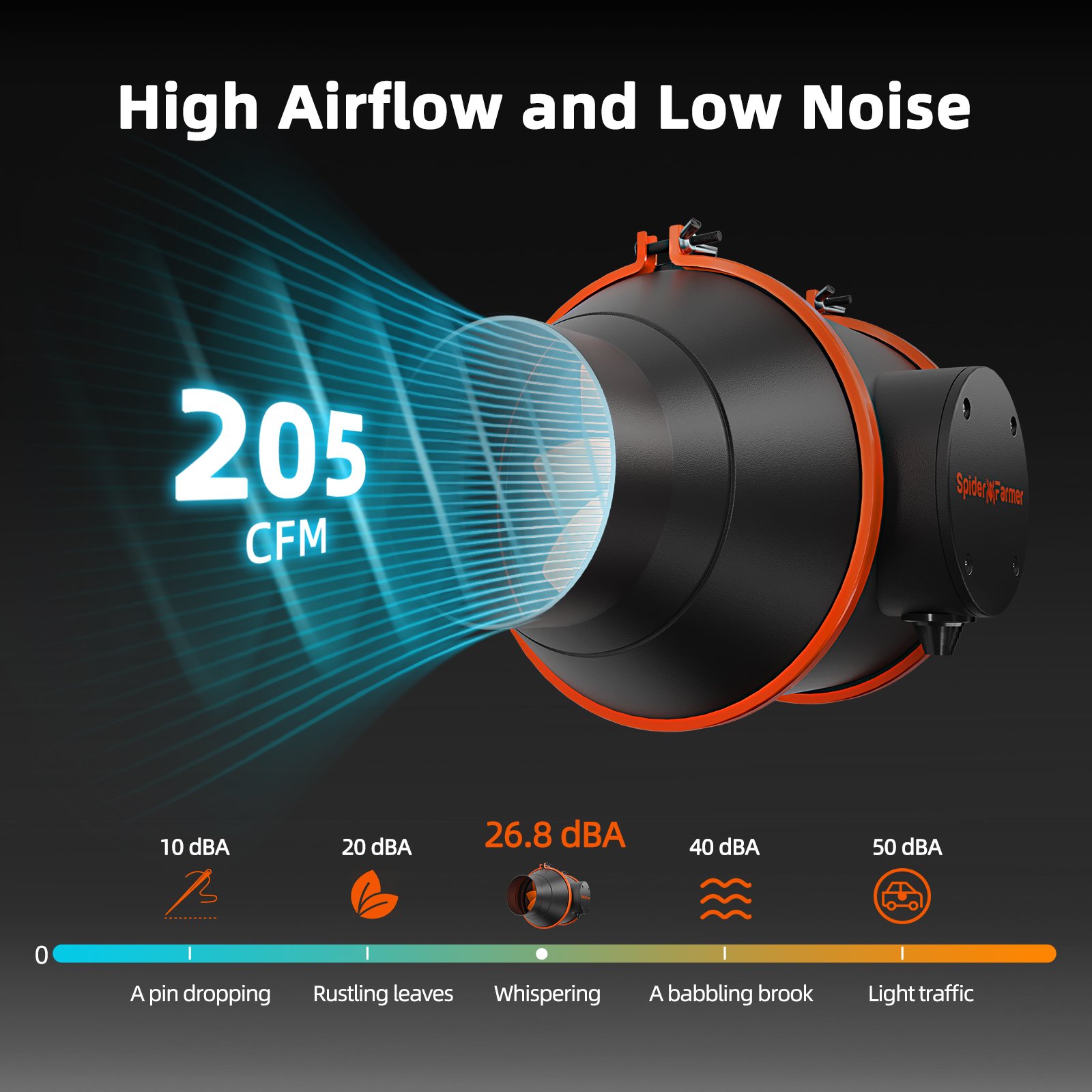

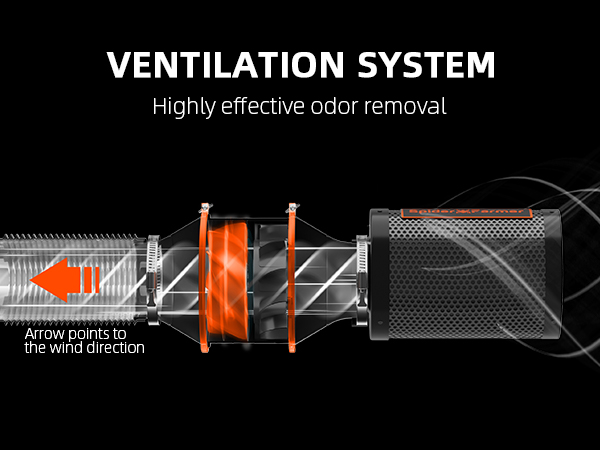

ćPOWERFUL INLINE FANćMixed flow design combined with a EC motor ensure truly energy efficient, with only 27 watts of power but gives a strong airflow up to 205 CFM. Lightweight ABS blades reduce the airflow resistance, add airflow by 40%.Ā

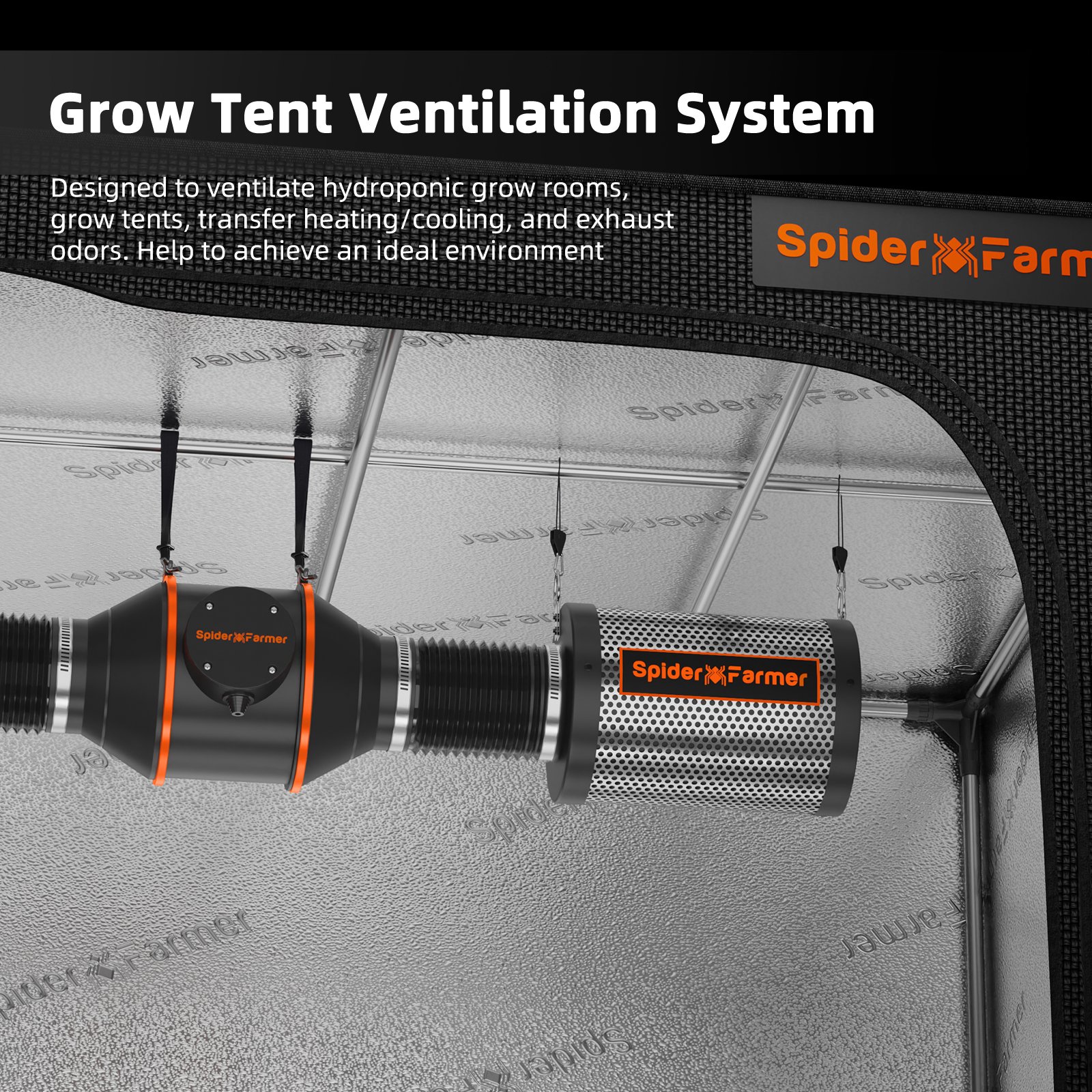

ćTemperature Regulationć: Proper ventilation helps maintain optimal temperatures within the grow space. Plants have specific temperature requirements for growth and flowering. Ventilation systems can expel hot air generated by lights or equipment and bring in cooler air from outside or from a separate cooling system, helping to regulate temperatures.
ćHumidity Controlć: Controlling humidity levels is essential for preventing mold, mildew, and other moisture-related issues. Ventilation systems can remove excess moisture from the air, especially during the flowering stage when plants are more susceptible to mold.

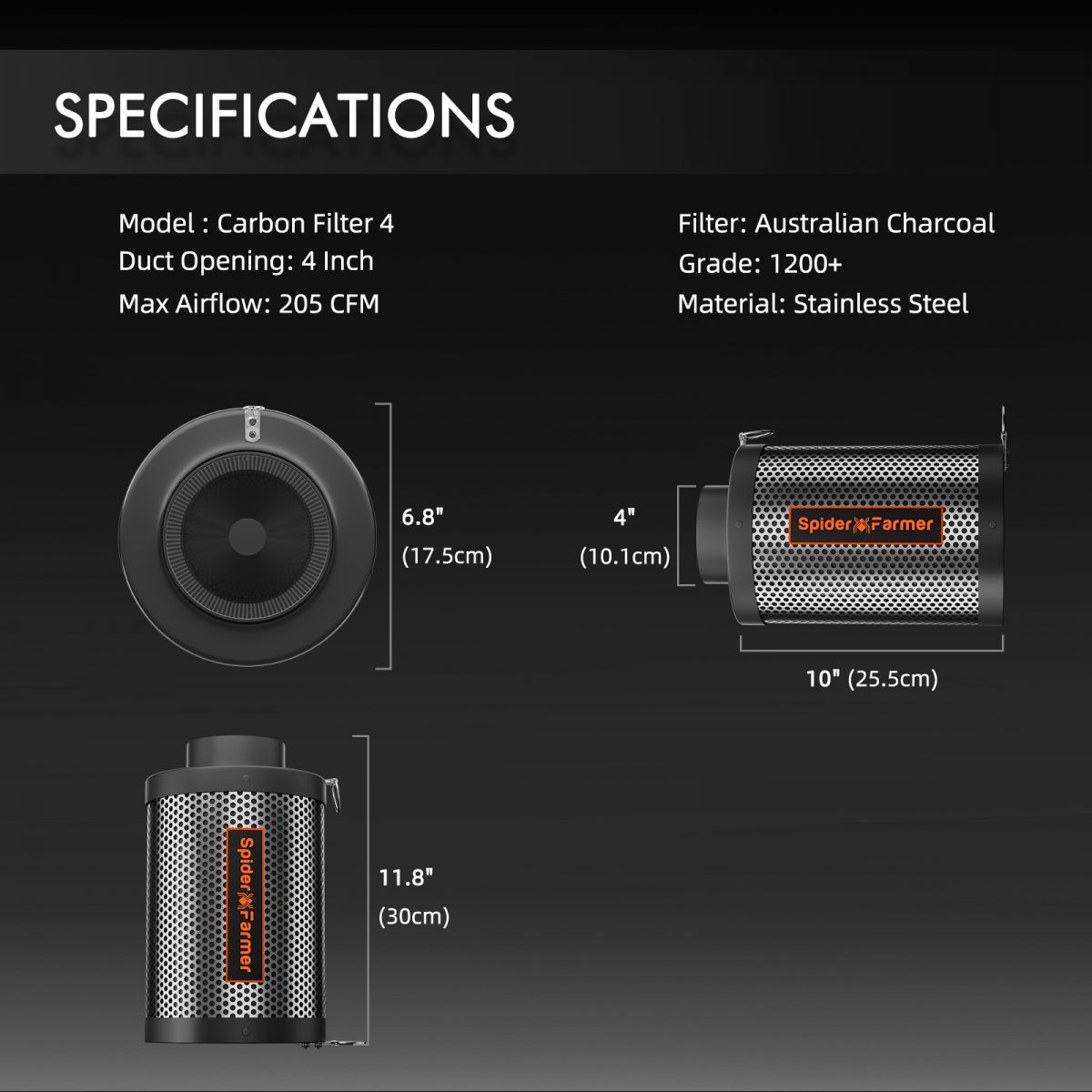

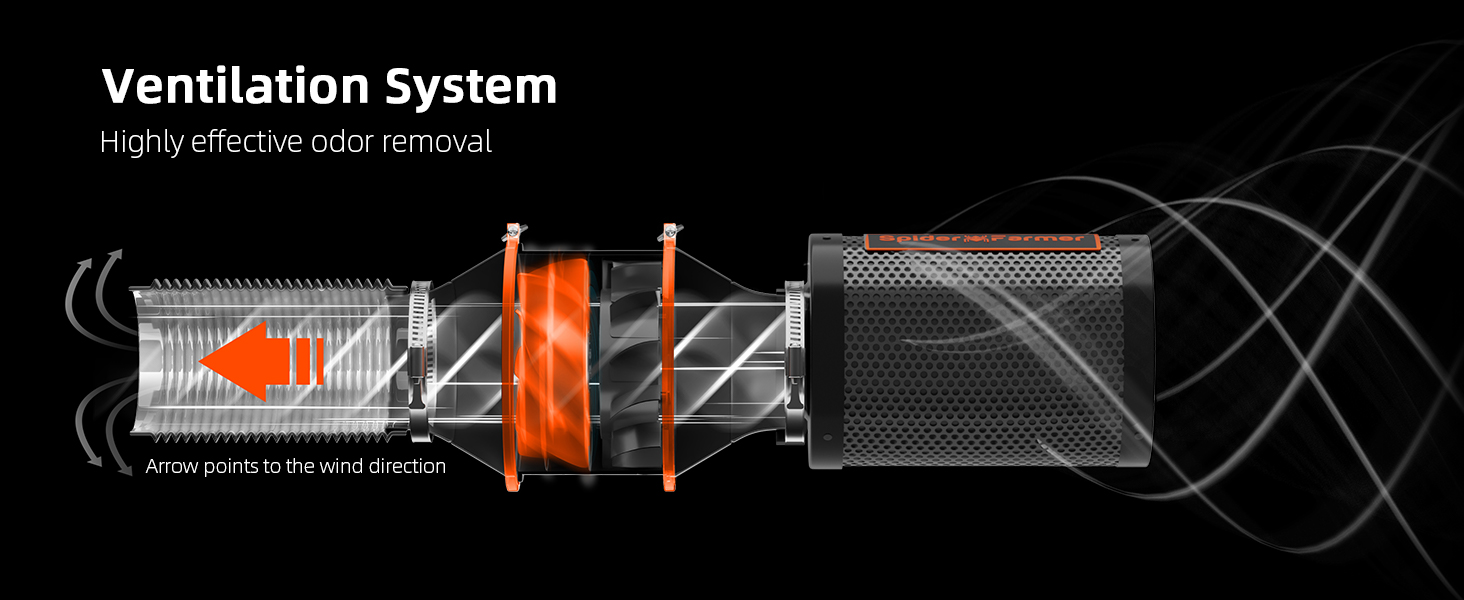

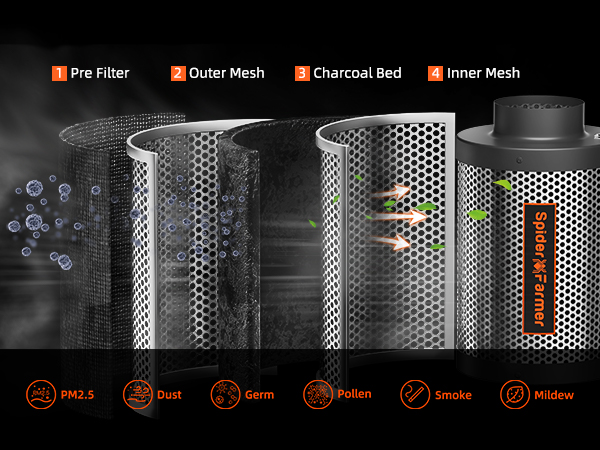

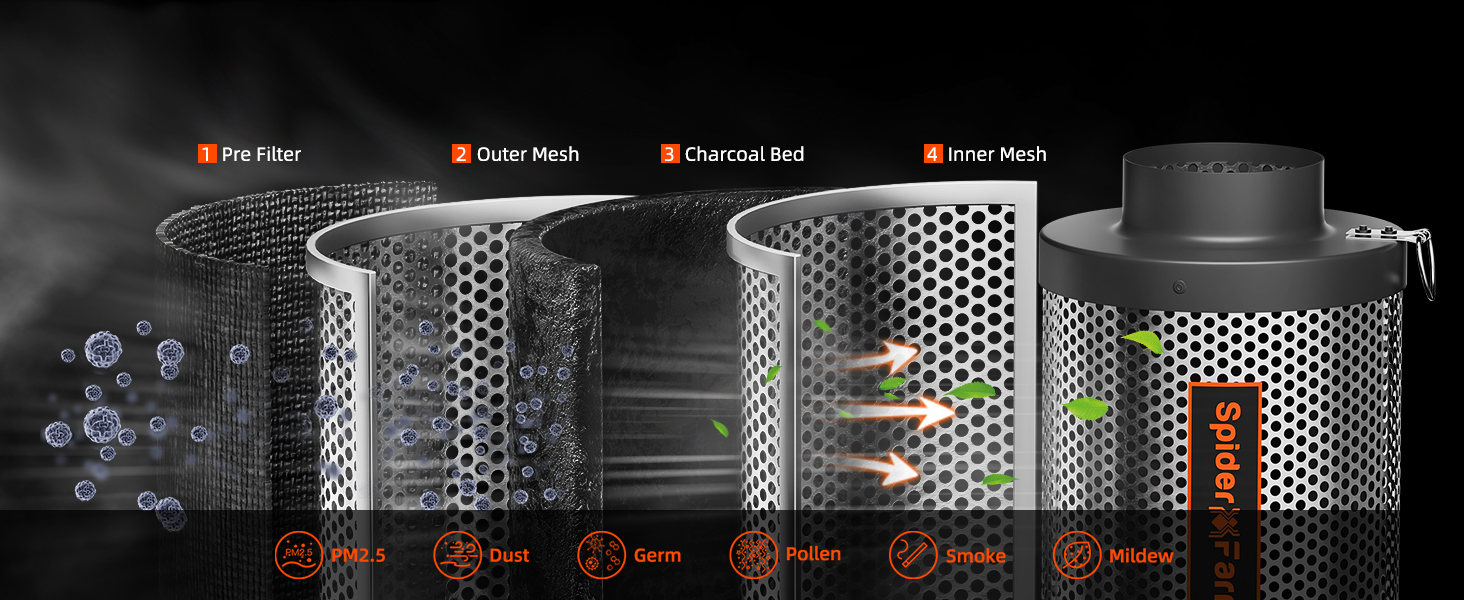

ćOdor Controlć: Some plants, can produce strong odors during flowering. Ventilation systems equipped with carbon filters can help remove these odors, preventing them from escaping the grow room and causing disturbances.
ćPOWERFUL INLINE FANćMixed flow design combined with a EC motor ensure truly energy efficient, with only 27 watts of power but gives a strong airflow up to 205 CFM. Lightweight ABS blades reduce the airflow resistance, add airflow by 40%.Ā
ćTemperature Regulationć: Proper ventilation helps maintain optimal temperatures within the grow space. Plants have specific temperature requirements for growth and flowering. Ventilation systems can expel hot air generated by lights or equipment and bring in cooler air from outside or from a separate cooling system, helping to regulate temperatures.
ćHumidity Controlć: Controlling humidity levels is essential for preventing mold, mildew, and other moisture-related issues. Ventilation systems can remove excess moisture from the air, especially during the flowering stage when plants are more susceptible to mold.
ćOdor Controlć: Some plants, can produce strong odors during flowering. Ventilation systems equipped with carbon filters can help remove these odors, preventing them from escaping the grow room and causing disturbances.
