(Note: A GGS 2-in-1 Adapter is required to control LED grow lights through the GGS Controller. This adapter is included in the kit.)

• 3.1 Manually Adjust Brightness for Precise Light Control:

• Set the brightness anywhere from 10% to 100%, giving you full control over light intensity at any time. For quick shut-off, setting the brightness to 0% will turn the lights off. Any setting between 0% and 10% automatically operates at 10% brightness.

• 3.2 Automate Your Lighting Schedule:

  • 10.2.1 Start and End Times: Easily set specific on and off times for your lights, so your plants get consistent light cycles without manual adjustments.
  • 10.2.2 Brightness Levels: Define the exact brightness level for each cycle, ensuring your plants receive optimal light intensity.

• 3.3 High-Temperature Protection for Your Plants and Equipment:

  • 10.3.1 Go Dark: Set a high-temperature threshold for dimming. When the ambient temperature reaches this threshold, the lights will automatically reduce brightness to 11% to prevent overheating.
  • 10.3.2 Turn Off: Set a higher temperature threshold for complete shutdown. When this threshold is reached, the lights will automatically turn off to protect your plants and equipment.

• 3.4 Sunrise/Sunset Simulation:

Activate this feature to simulate natural light changes, with the brightness gradually increasing at sunrise and gradually decreasing at sunset.

• • Example: If you set the light schedule from 8:00 AM to 8:00 PM with brightness at 100% and a 30-minute sunrise/sunset setting, the lights will gradually increase from 0% to 100% brightness between 8:00 AM and 8:30 AM. In the evening, starting at 7:30 PM, the brightness will gradually decrease from 100% until the lights turn off completely at 8:00 PM.

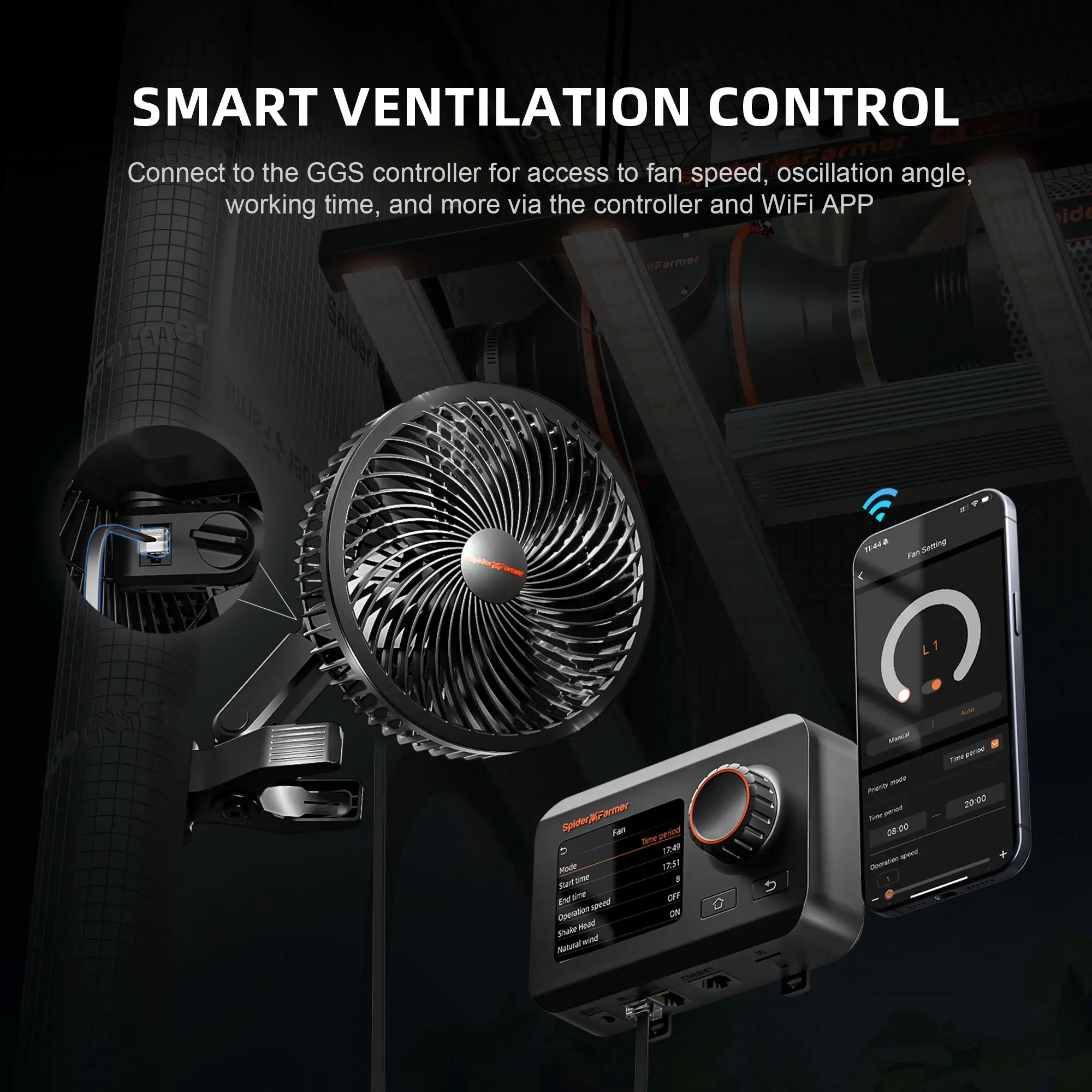

4. How to Control Clip Fans and Inline Fans

Key Steps in the Process:

• It will be compatible with both the Spider Farmer GGS controller and the GGS Power Strip. You can manage your Clip Fan and Inline Fan through the 'Fan (Clip Fan)' and 'Blower (Inline Fan)' options in the 'Device' section of the controller.

5. Other Settings

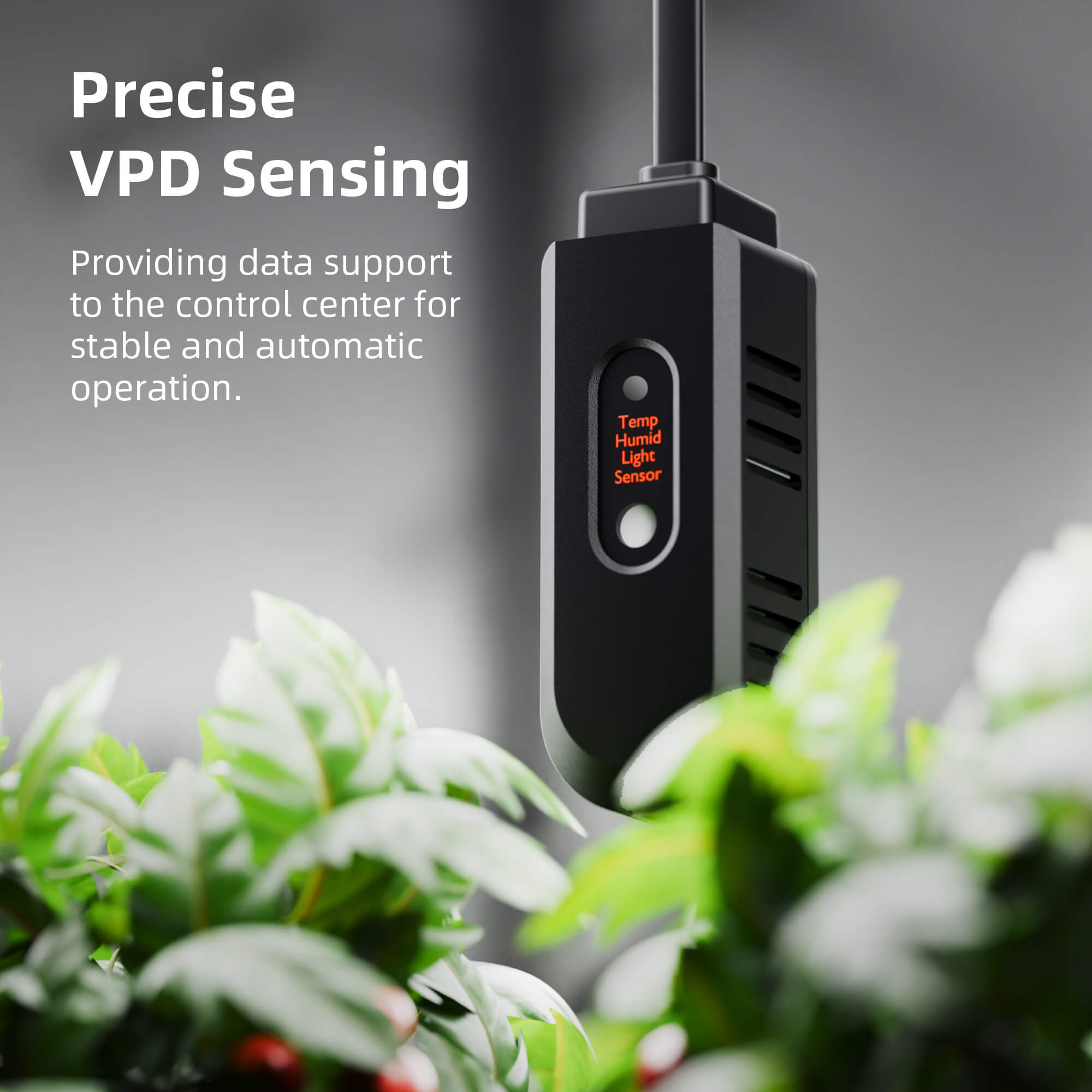

• 5.1 Sensor Calibration

• 5.1.1 Temperature Calibration: Adjust the temperature offset from -10°C to +10°C in 0.1°C increments.
• 5.1.2 Humidity Calibration: Adjust the humidity offset from -20% to +20% in 0.1% increments.
• 5.1.3 CO₂ Calibration: Adjust the CO₂ concentration offset from -200 ppm to +200 ppm in 10 ppm increments.

5.2. Screen Timeout

Set the controller screen to turn off after 1-10 minutes of inactivity, or select “Never” to keep it continuously on.

6. Keytone

Enable or disable button sounds.

7. Firmware Update

Upgrade firmware via SD card or over the network.

8. Factory Data Reset

Restore the device to its original factory settings.
